Trabsformer design procedure is an important to follow for calculating number of turns on primary and secondary side along with leakage inductance values with a proper isolation.
These steps depends mainly on 3 things

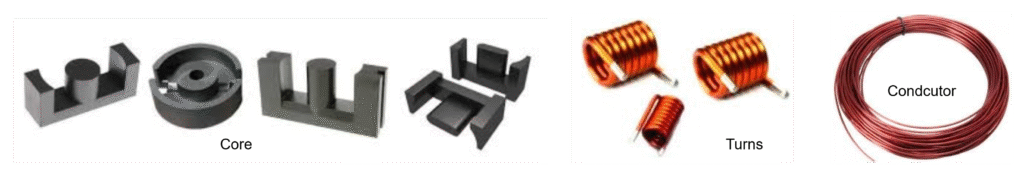

- Proper selection of core,
- Calculation of turns on primary and secondary, and
- Proper selection of winding wires.

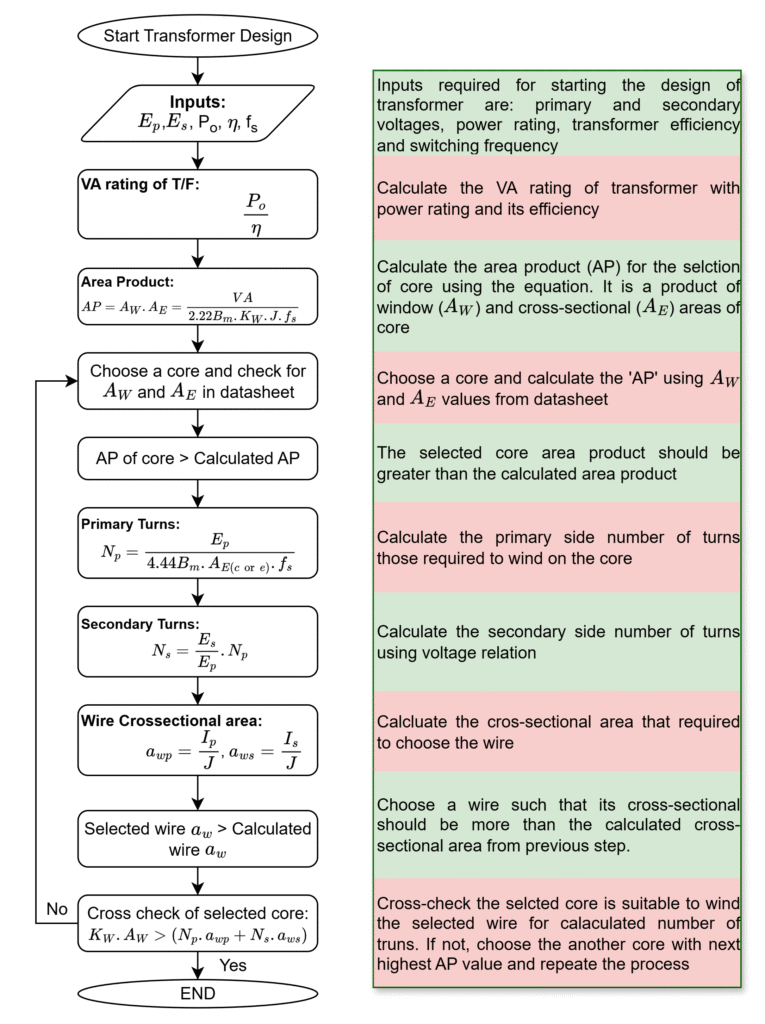

The complete design steps and flow shown in below flowchart for better understanding.
